Automatic Glycohemoglobin Analyzer
ADAMS A1c Lite

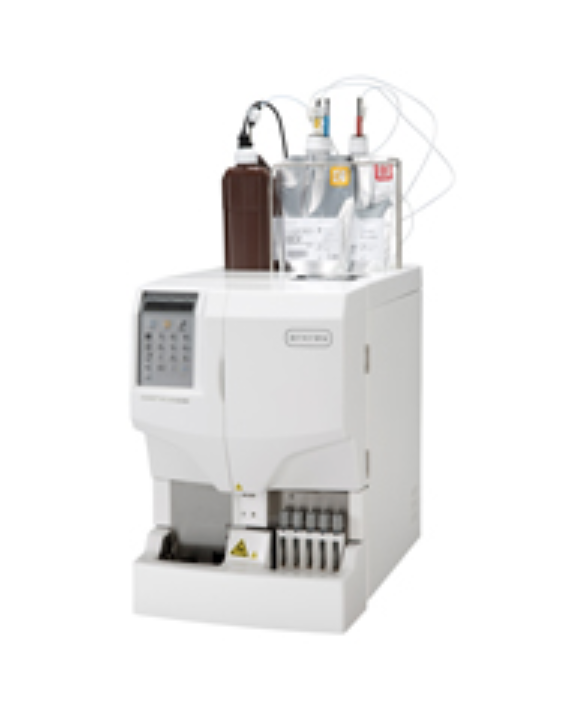

HA-8380V
This is a small but with full functional automated Glycohemoglobin (HbA1c) analyzer based on HPLC (High Performance Liquid Chromatography).
Accurate Reporting
Variant mode provides HbA1c values unaffected by major hemoglobin variant.
User Friendly Operation

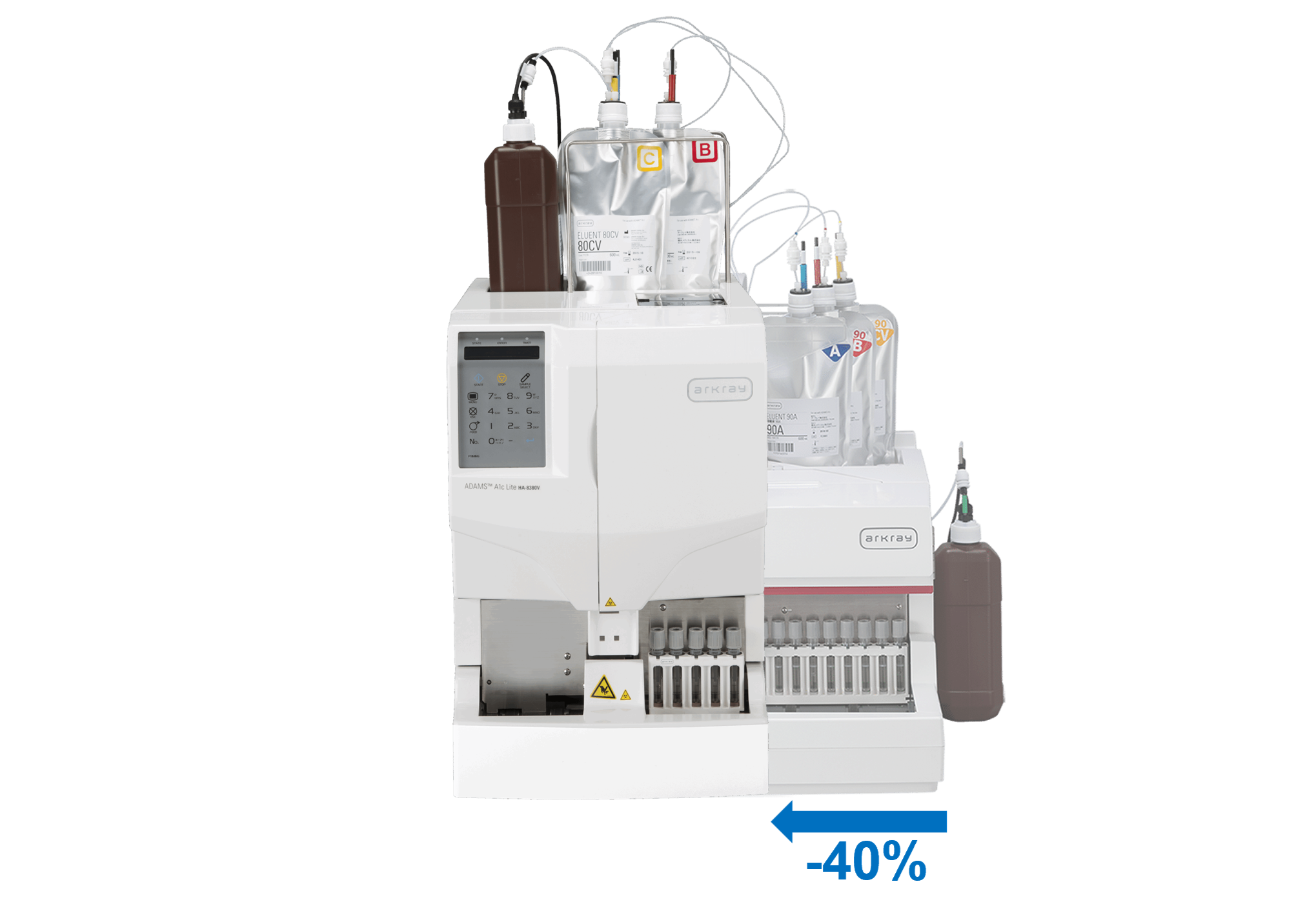

- Compact design

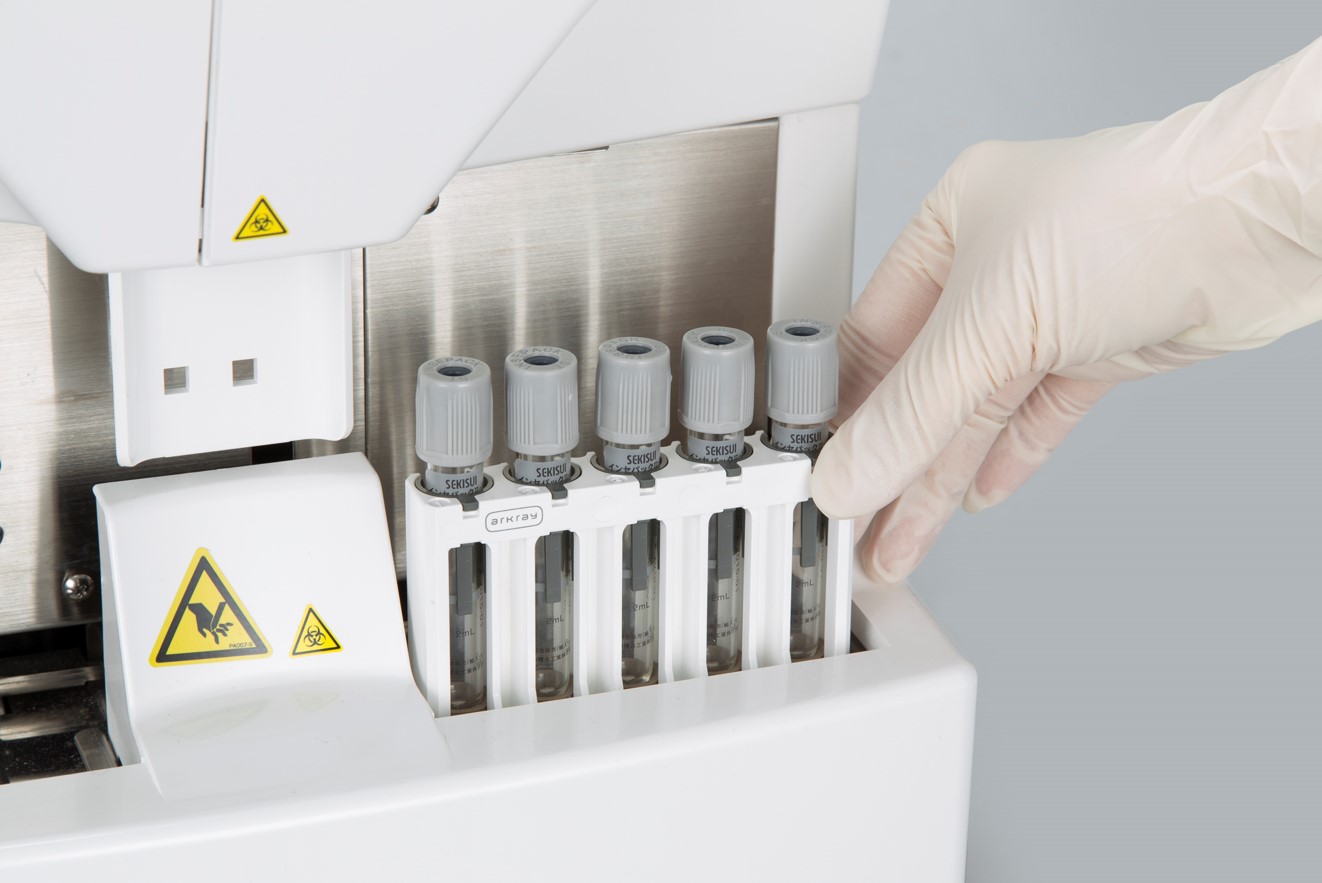

- Equipped with cap-piercing

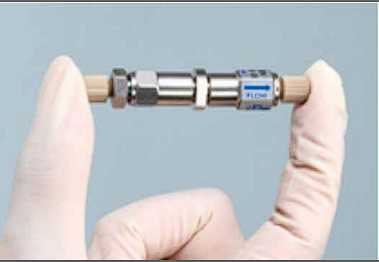

- Pre-filter build-in Column
Lot-free combination
Performance of ARKRAY HPLC column is not affected by different lots of reagents.
Features
Specification
| Sample Type | Whole blood or hemolysis sample |
| Measurement items | HbA1c (stable HbA1c), HbF (In Variant mode, HbS and HbC can be detected) |
| Measurement principle | HPLC method (Reversed-phase cation exchange chromatography) |
| Processing speed | Fast mode : 100 seconds / sample Variant mode : 160 seconds / sample |
| Required sample volume | Sample tube : 10mm or above from the bottom of sample tube Sample cup : 400 μL |
| Displayed range | HbA1c : 3 to 20 %, 9 to 195 mmol/mol HbF : 0 to 100 % |
| Number of samples loaded | One-way transportation: Maximum of 10 samples |
| Memory capacity | 300 test results (including calibration results) |
| External output | Serial 1 port (Can be optionally used as an Ethernet port) |
| Dimensions | 330(W)x515(D)x485(H)mm * Not including the projection portions, eluent packs and hemolysis washing solution bottle |
| Weight | Analyzer: Approx. 35kg |
