Home > Products > HA-8190V

Automatic Glycohemoglobin Analyzer

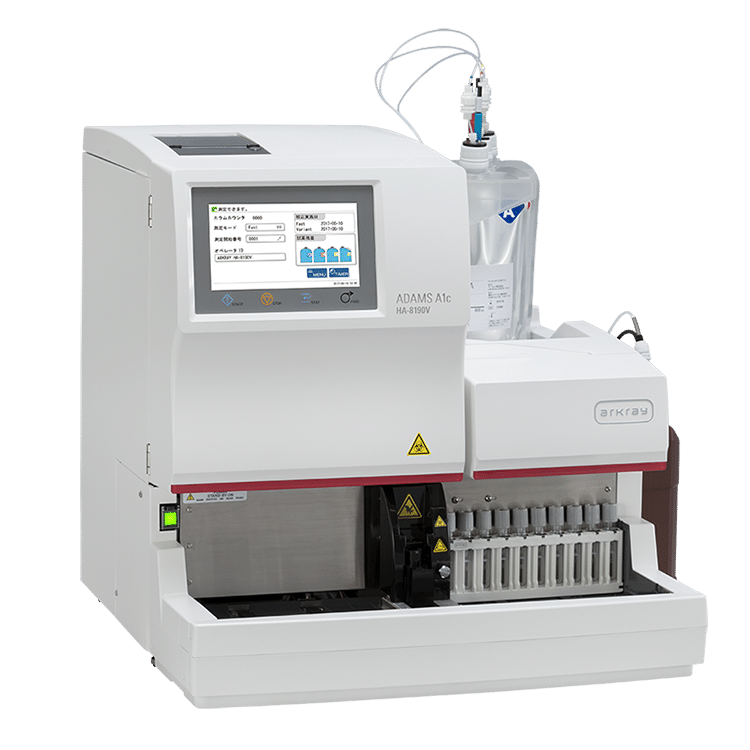

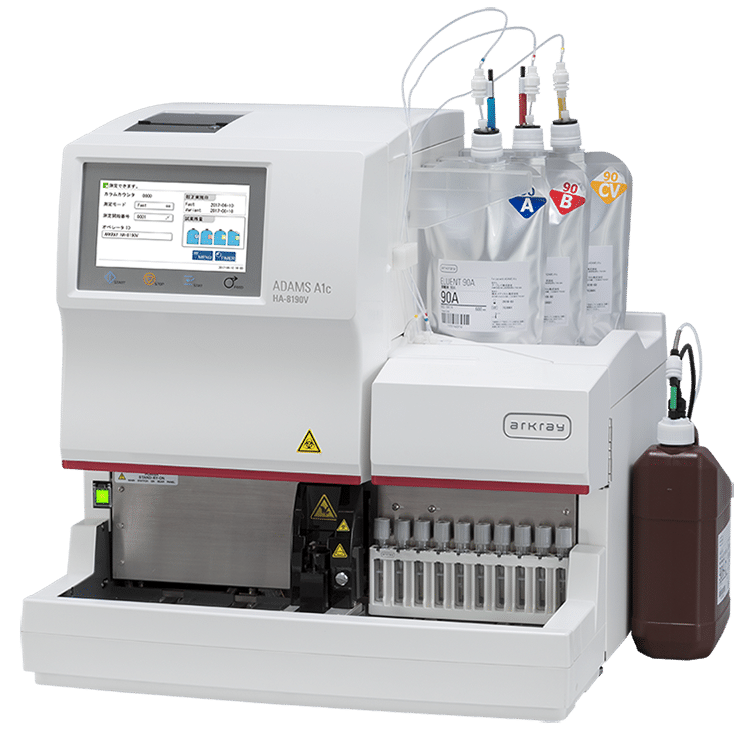

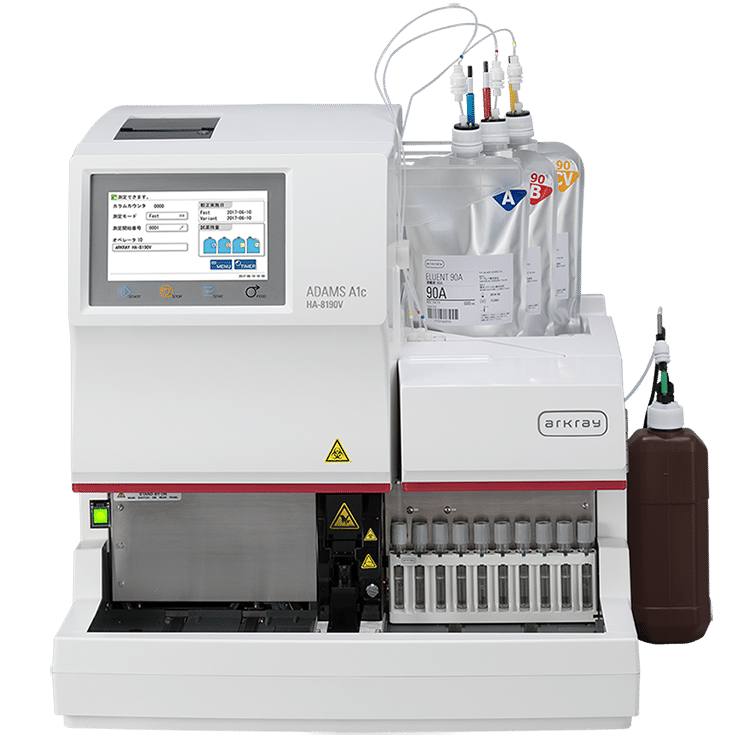

This is a fully automated Glycohemoglobin (HbA1c) analyzer based on HPLC (High Performance Liquid Chromatography).

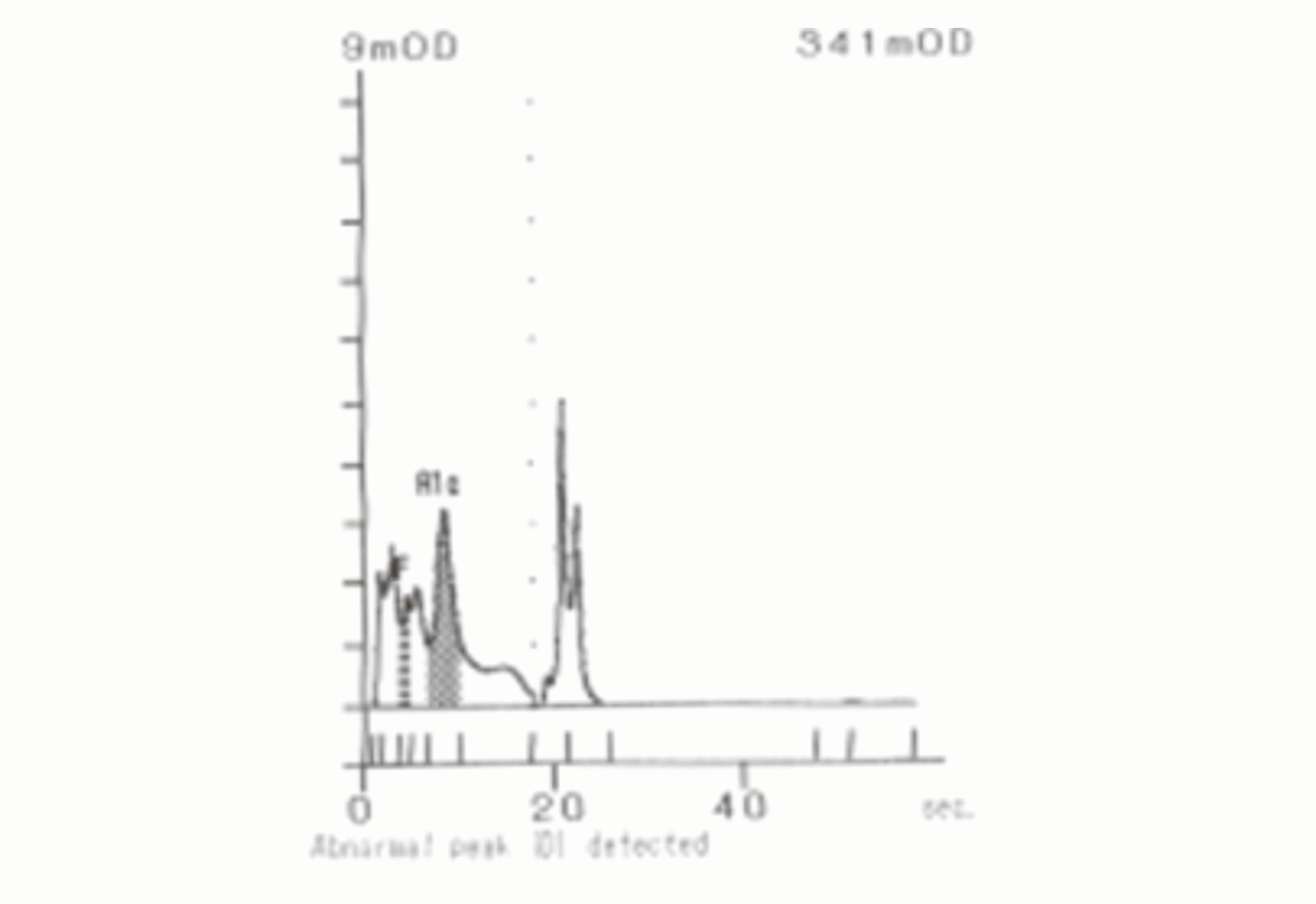

Detect and separate variant hemoglobin automatically as standard function.

Only 24 seconds/test in Fast mode and 58 seconds/test in Variant mode.

HA-8190V can seperate HbC and HbS and detect HbD and HbE.

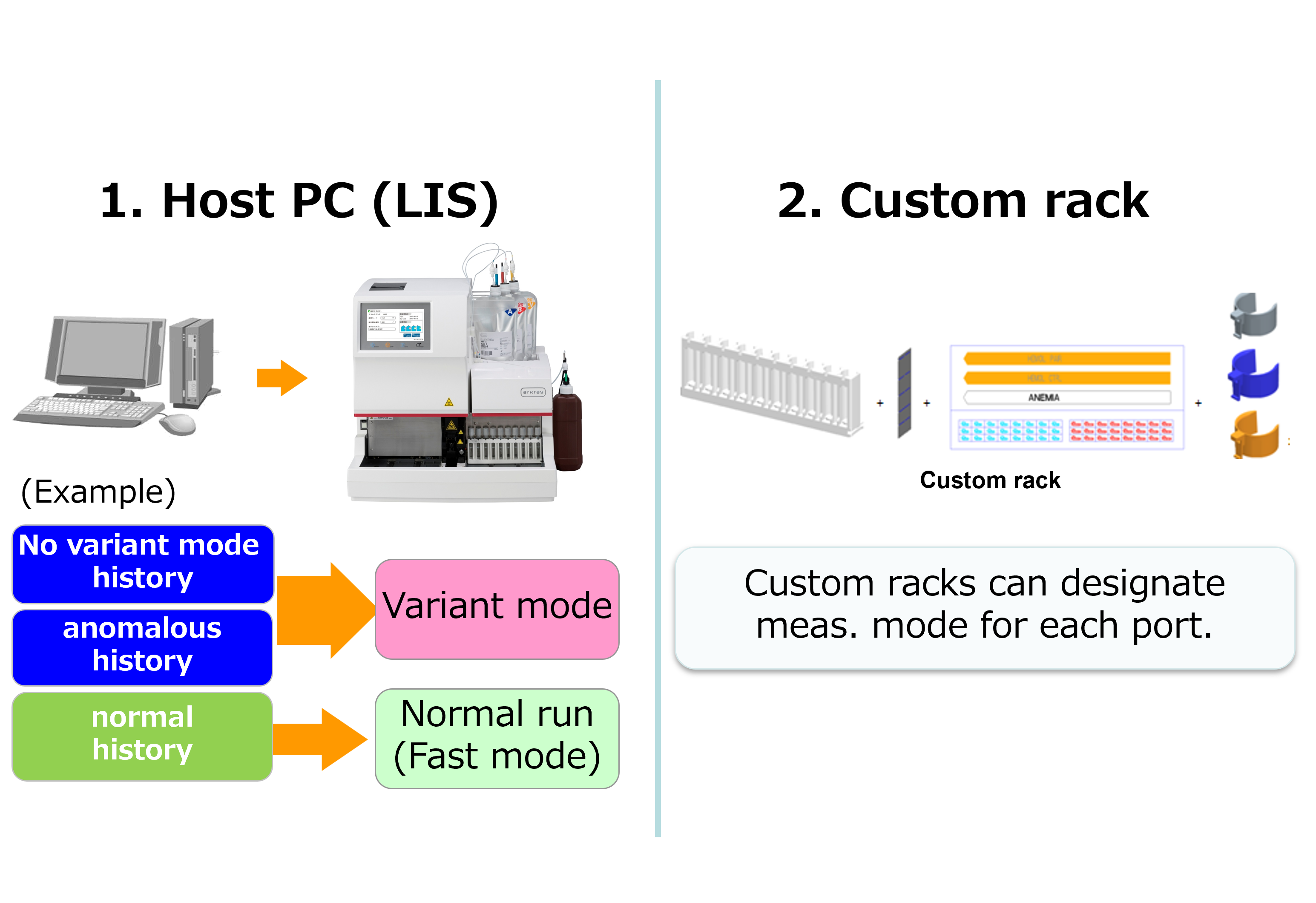

HA-8190V doesn’t need to switch mode between Fast mode and Variant mode. Therefore, this enables shorter Turn Around Time.

Ensure high performance of HPLC column by avoiding expired pre-filter and minimize maintenance by avoiding a separate change of pre-filter.

Sample Type	Whole blood or hemolysis sample
Measurement items	HbA1c (stable HbA1c), HbF (In Variant mode, HbS and HbC can be separated and HbE and HbD can be detected)
Measurement principle	HPLC method (Reversed-phase cation exchange chromatography)
Processing speed	Fast mode : 24 seconds / sample Variant mode : 58 seconds / sample
Required sample volume	Sample tube : 10mm or above from the bottom of sample tube Sample cup : 400 μL
Displayed range	HbA1c : 3 to 20 %, 9 to 195 mmol/mol HbF : 0.0 to 99.9%

Number of samples loaded	One-way transportation: Maximum of 50 samples Loop transportation: Maximum of 100 samples
Display	Color LCD (with touch screen)
Memory capacity	900 test results (including calibration results)
Dimensions	530(W)x530(D)x530(H)mm * Not including the projection portions, eluent packs and hemolysis washing solution bottle
Weight	Analyzer: Approx. 41kg Sampler unit: Approx. 4kg
